Permeable Track System –
Durable, Safe, All-Weather Performance
Engineered for schools, stadiums and public spaces with superior elasticity, water permeability and cost efficiency
Permeable Track System
Our Permeable Track System is an all-weather system widely used in school playgrounds, multipurpose training venues, parks and jogging paths.
The innovative base-plus-spray structure offers unmatched water and vapor permeability, ensuring long-term stability even in hot climates.
Structure & Function
Product Parameters
Parameter | Specification |
Total Thickness | 13–15 mm |

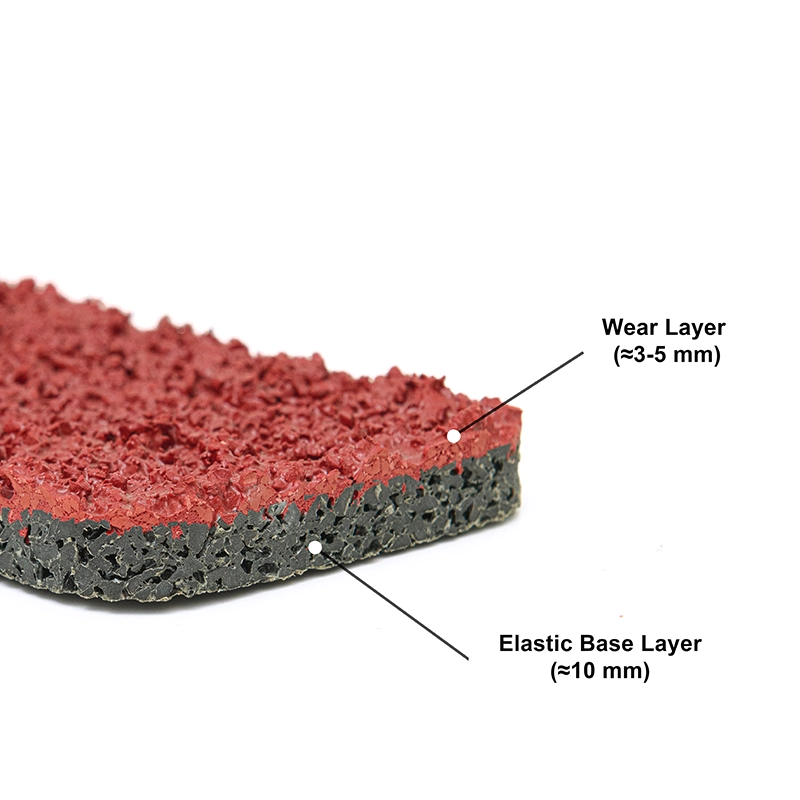

Base Layer Thickness | ~10 mm |
Wear Layer Thickness | 3–5 mm |
Shore Hardness | 55–65 (A) |
Tensile Strength | ≥ 0.52 MPa |
Impact Absorption | ≥ 90% |
Vertical Deformation | ≤ 2 mm |
Anti-skid value | 89 BPN, 20℃ |
Flame Retardant | Level 1 |
Permeability | ≥ 500 mm/h |
Service Life | 8–10 years (normal use) |
Environmental Standards | Complies with EU REACH / RoHS / EN14877 |
Suitable Applications
School Playgrounds
Indoor and Outdoor Competition Venues
Training Fields
Key Features
Breathable & Permeable
Prevents bubbling, quick vapor dissipation.
High Durability
8–10+ years of service life, excellent wear resistance.
Superior Elasticity
Comfortable, safe surface for athletes.
Flexible Installation
Works on concrete or asphalt bases with minimal flatness requirements.
Cost-Effective
International performance at half the price.
Competitive Advantages
15+ Years Experience
Deep manufacturing, R&D and on-site expertise.
Integrated Supply Chain
In-house production of granules, binders and coatings for consistent quality.
Proven Performance
Over 1 million m² of installed tracks, 70% in service > 8 years.
Superior Quality Control
- High-grade SBR/EPDM granules with uniform size and low dust.
- Premium polyurethane binders with stable viscosity and aging resistance.
- Accurate binder-to-granule ratio (+15–20% PU) for spike-shoe durability.
On-Site Technical Support
Expert technicians with 10+ years of experience.
High Value
Up to 85% of top-tier brand performance at ~50% of the cost.
Videos
Product Testing & Construction Videos
Material Testing – tensile, elasticity, water permeability
Construction Process – base laying, spraying, line marking
Get a Free Consultation
Contact us today to discuss your project or request a sample.
